Copying Controls Between Mesh Operations

It is possible to copy and paste controls between mesh operations.

Input parts for the controls on the source mesh operation are only copied to the destination controls if the input parts exist in the destination mesh operation (except inherited parts).

Parts from the source mesh operation are converted to the appropriate inherited parts in the destination mesh operation. It is also possible for inherited parts to be converted into their appropriate parent parts, depending on which operations the controls are copied to and from.

To Copy Controls Between Mesh Operations:

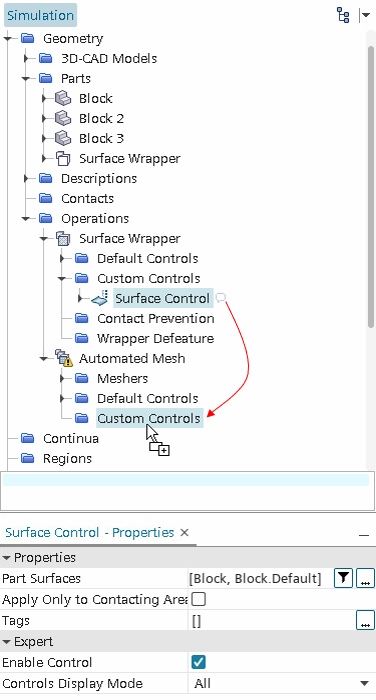

Click and hold the source mesh operation Control node that you want to copy.
Drag and drop the Control node onto the corresponding Controls manager node in the destination mesh operation.

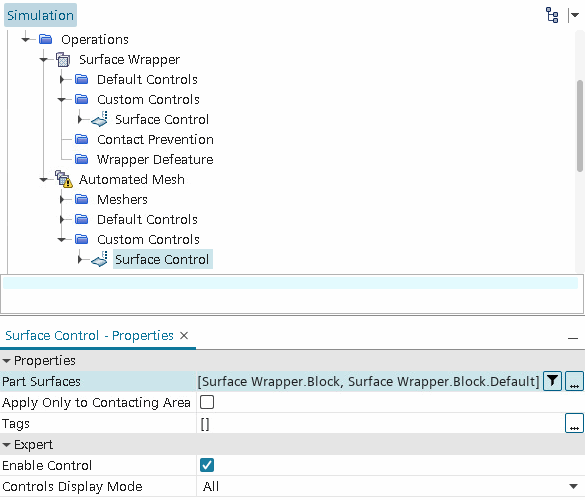

The Controls manager node in the destination mesh operation contains a copy of the Control. The Part Surface names in the destination mesh operation Control reflect the appropriate inherited part name.
