Creating Point Derived Data Sets

A point derived data set is represented as a child node of the Derived manager, which has a pop-up menu.

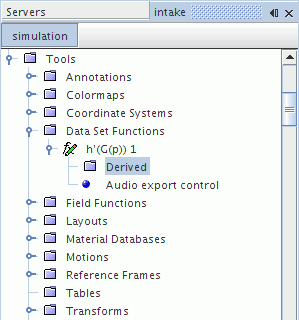

To create a point derived data set:

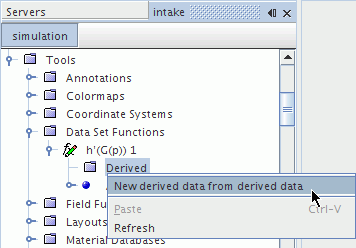

Right-click the Derived manager node and select New derived data from derived data.

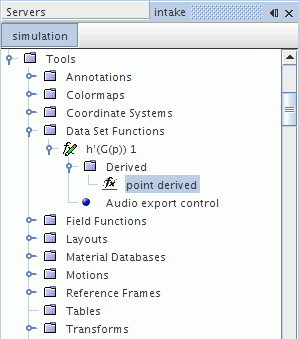

A point derived node appears as a child to this node.

Derived Properties

None.

Derived Data Pop-Up Menu


New derived data from derived data	Creates a point derived child node in which monitors can be accessed.
Paste	Places the contents of the clipboard into the selected node.
Refresh	Refreshes the sub-nodes of the selected node in the simulation tree.
