Calculating the Line Spatial Fourier Transform

Before calculating the line spatial Fourier transform from an existing line time Fourier transform, import the data under the Derived child node of the line spatial Fourier transform:

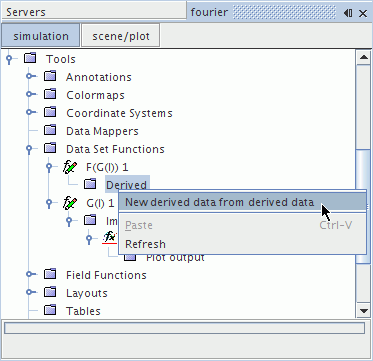

Right-click Tools > Data Set Functions > F(G(l)) 1 > Derived and select New derived data from derived data.

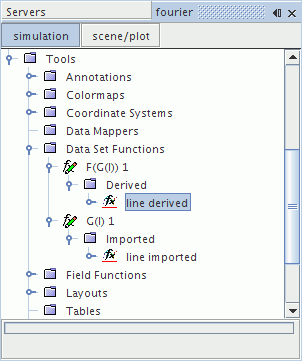

A line derived node appears in the simulation tree.

To calculate the line spatial Fourier transform, select the line derived data that was created for the line time Fourier transform:

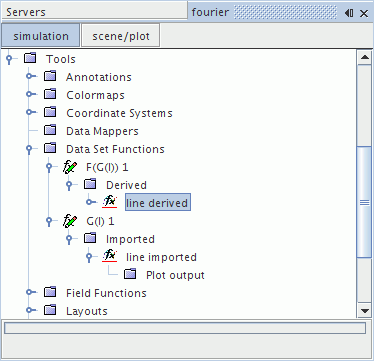

Select the F(G(l)) 1 > Derived > line derived node.
In the Properties window, set Input derived data to the derived data you created for the line time Fourier transform.

If the Update Active property is activated, the line spatial Fourier transform is calculated after the property assignment. Alternatively, you can calculate the transform by right-clicking the line derived node and selecting Update Output, irrespective of the state of the Update Active property.

Line Derived Properties


Input derived data	The derived data that was created for the line time Fourier transform.
X Units	The units of the X axis.
Y Units	The units of the Y axis.
Update Active	Whether the update is active for the derived line.
	Activated	The update is active.
	Deactivated	The update is inactive.

Line Derived Expert Properties


X Surface Axis Units	The units in which the X axis is specified.
Y Surface Axis Units	The units in which the Y axis is specified.
Z Surface Axis Units	The units in which the Z axis is specified.
