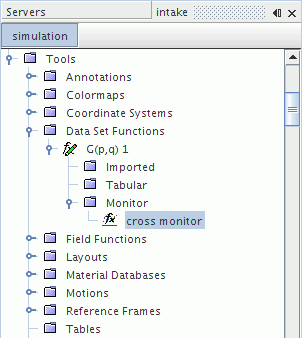

Derived Cross Monitor Data Sets

Derived cross monitor data sets allow a correlation to access the monitors that you create for this simulation.

This object cannot be deleted while a link is in place from derived data sets in a plot. This object shares pop-up menu items with other derived data sets.

To access a particular monitor, simply select it in the properties of this object. If the Update Active property is activated, the point-to-point time Fourier transform or the point-to-point time correlation is calculated after the monitor assignment. Alternatively, you can calculate the transform by right-clicking the cross monitor node and selecting Update Output, irrespective of the state of the Update Active property.

Cross Monitor Properties


Input Data 2	The monitor that is the source of the data of this object.
Input Data 1	The monitor that is the source of the data of this object.
X Units	Displays the calculated units for the x-axis data.
Y Units	Displays the calculated units for the y-axis data.
Update Active	Whether the update is active for the imported monitor.
	Activated	The update is active.
	Deactivated	The update is inactive. This state is the default.
