Creating Derived Imported Line Data Sets

Derived imported line data sets are represented as child nodes of the Imported manager.

(An exclamation point on the icon means the node is ready for updating.)

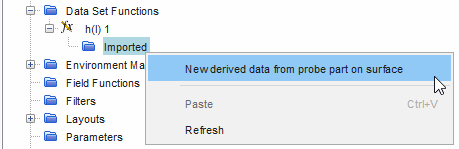

This manager has a pop-up menu. To create a derived imported line data set, right-click the Imported node and select New derived data from probe part on surface.

A Multi-Point Imported node appears as a child to this node.

Imported Properties

None.

Imported Pop-Up Menu


New derived data from imported surface	Creates a Multi-Point Imported child node in which data sets can be imported.

See also common menu items.

Multi-Point Imported Properties


Part	Specifies the derived part on the surface where data is extracted.
Field Function 1	Defines the field function that is extracted. Only field functions added by a .trn or .simh file can be selected.
Data surfaces 1	Defines the surfaces from which data is extracted. Only surfaces from a .trn or .simh file can be selected.
Representation	Selects a representation to indicate data from a .trn or .simh file.
Update Active	Whether the update is active for the imported point. When a part is modified, this property is automatically deactivated for all of the affected derived imported surface data sets.
	Activated	The update is active.
	Deactivated	The update is inactive.

Display slider control Properties


Slider Value	Determines the current display time. The slider can vary from the maximum to the minimum time of the current signal.
