Using the Component Molecular Diffusivities Method for Molecular Diffusivity

This method allows you to specify the molecular diffusivity of separate components in a multi-component mixture, for cases where the other methods are not sufficient to predict it accurately.

Some examples of this situation are:

Simulations with diffusion dominated flows (that is, where convection is negligible or where there is no turbulence); and,
Simulations containing mixture components that have significantly different molecular weights (such as H2 with fast diffusion and C10H22 with slow diffusion).

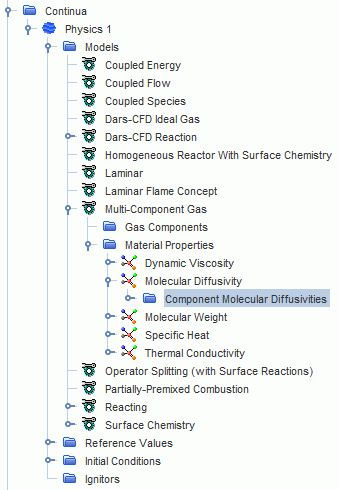

To expose this method, select the Material Properties > Molecular Diffusivity node for a multi-component gas or liquid. Then, set Method to Component Molecular Diffusivity. The Molecular Diffusivity > Component Molecular Diffusivities node appears

When this option is set, you can specify the diffusivities for each component directly using an array profile.

All the usual methods for a scalar profile quantity are available. For simulations with the Concentrated Electrolyte or Li-Ion Battery Cell models, molecular diffusivity for the salt component of the multi-component mixture can be specified by using the Table (T,c) method (Using Table (T,c)).
