Using Constant Values

Generally, most material property values are specified as constants.

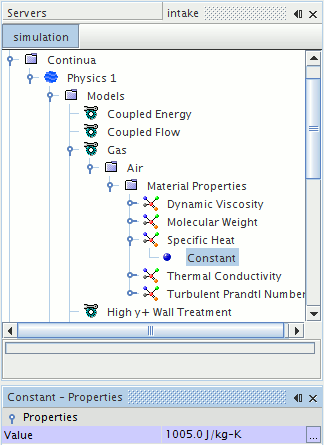

The constant value is entered as a scalar value in the properties as shown below for Specific Heat.

Constant Value Properties


Constant value	The constant scalar value for the material property.
