Using Field Functions

Field functions can be used to create non-standard functions for material properties.

Suppose that a scalar field function that is called Effective Conductivity is defined as

1.5207e-11 * pow($Temperature,3) - 4.857e-8 * pow($Temperature,2) + 1.0184e-4 * $Temperature - 3.9333e-4

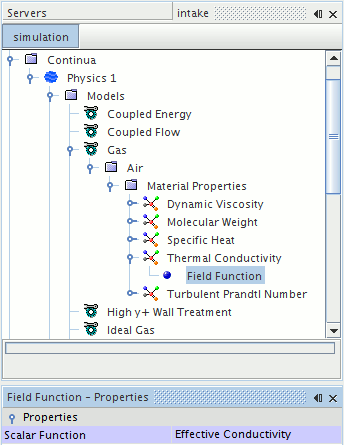

This field function would then be selected in the list corresponding to the Scalar Function property in the Properties window.

Field Function Value Properties


Scalar Function	The field function that is used to define this material property. A list of available scalar functions is provided.
