Using the Heat of Formation

The Heat of Formation is the heat that is evolved when 1 kilogram of the substance is formed from its elements in their respective standard states [J/kg].

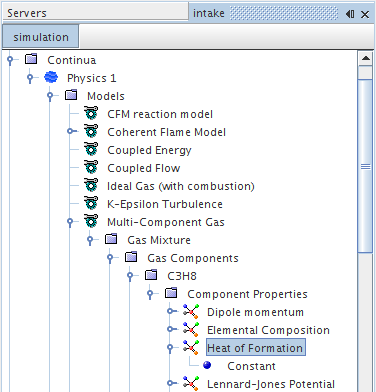

This value node (Heat of Formation in the following screenshot) is activated when:

The Specific Heat property of a mixture component in an EBU or CFM combustion model is to be calculated by a method other than Thermodynamic Polynomial Data.
An energy model is included with Eulerian Multiphase (EMP) multiphase simulations.
An energy model is included with Fluid Film simulations, and the physics continuum is defined with the Eulerian Multiphase multiphase flow model.

The supplied quantity is always a constant value.
