Using the Density Table Method for Density Derivatives

When density is defined by a table of data in temperature (or temperature and pressure for compressible flows), Simcenter STAR-CCM+ can numerically differentiate the table of data for density.

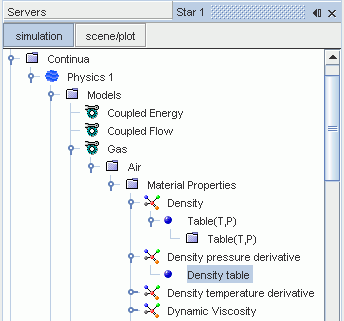

When density is specified with the Table(T) or Table(T,p) method, Simcenter STAR-CCM+ uses numerical differentiation to evaluate the following properties:

The density pressure derivative, derived by differentiating the density table with respect to pressure;
The density temperature derivative, derived by differentiating the density table with respect to temperature.

The User-Defined Equation of State model requires these properties. For an incompressible equation of state in the presence of an energy model, only the density temperature derivative is required. For a compressible equation of state, both the density pressure and density temperature derivatives are required.
