Using the Mixture Method for Critical Temperature and Pressure

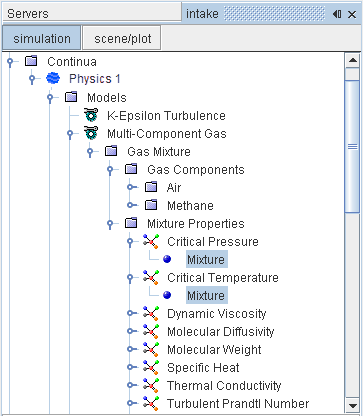

The Mixture method calculates the critical temperature and pressure of a mixture.

The Mixture method calculates the critical temperature $T_{c, m}$ of a mixture as:

Figure 1. EQUATION_DISPLAY

T_{c, m} = \frac{\sum_{i}^{} T_{c, i} Y_{i} / W_{i}}{\sum_{i}^{} Y_{i} / W_{i}}

(140)

where $W_{i}$ is the molecular weight, $Y_{i}$ the mass fraction and $T_{c, i}$ the critical temperature of species i. The summation is over all species in the mixture. The critical pressure $P_{c, m}$ of a mixture is similarly calculated as:

Figure 2. EQUATION_DISPLAY

P_{c, m} = \frac{\sum_{i}^{} P_{c, i} Y_{i} / W_{i}}{\sum_{i}^{} Y_{i} / W_{i}}

(141)

where $P_{c, i}$ is the critical pressure of component i.

Properties

None.
