Chemkin Database Format

The information in the Chemkin database file is organized in a precise structure so that Simcenter STAR-CCM+ can read it into the simulation.

In order for Simcenter STAR-CCM+ to read the information correctly, any modifications must follow a precise syntax of position and spacing. Never modify the original Chemkin database file that is supplied with Simcenter STAR-CCM+. Make a copy of the file for modifications and keep the original somewhere safe.

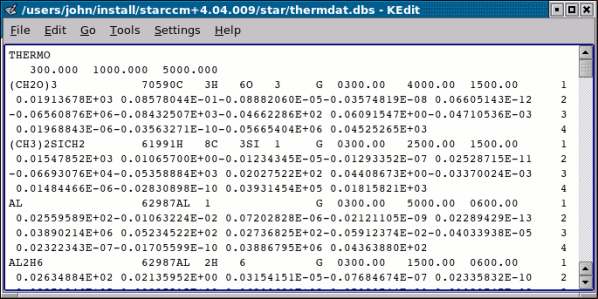

The following screenshot shows an example of the top of a Chemkin database file in a text editor.

The file begins as follows:

The top line starts the file with THERMO.
The second line from the top contains temperature ranges for two sets of coefficients: lowest, common, and highest.

The body of the file contains data for the species. Each set of data for a particular species is composed of four lines, numbered 1 through 4 at the end:

Line 1 consists of:
- The name of the species
- The date
- The atomic symbols and formula of the species
- The phase (G = gas; L = liquid; S = solid)
- The temperature range
Line 2 contains coefficients $a_{1}$ through $a_{5}$ for the upper temperature interval.
Line 3 contains coefficients $a_{6}$ and $a_{7}$ for the upper temperature interval, and coefficients $a_{1}$ through $a_{3}$ for the lower temperature interval.
Line 4 contains coefficients $a_{4}$ through $a_{7}$ for the lower temperature interval.

After the last set of numbered lines, the bottom line terminates the file with END.
